Small And R&D Scale Softgel Encapsulation Machine Equipment For Making Soft Capsule 380V / 240V
Quick Detail
| Product Name | Automatic Softgel/Capsule Making Machine | Driven Type | Electric |
| Capacity | 22800 pcs/hour, 4r/min | Material | Stinless Steel |

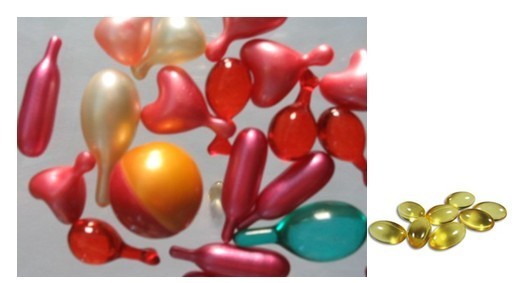

| Application | Food, pharmaceutical, making softgel/capsule | Capsule shape | OV, OB,etc |
Production Description

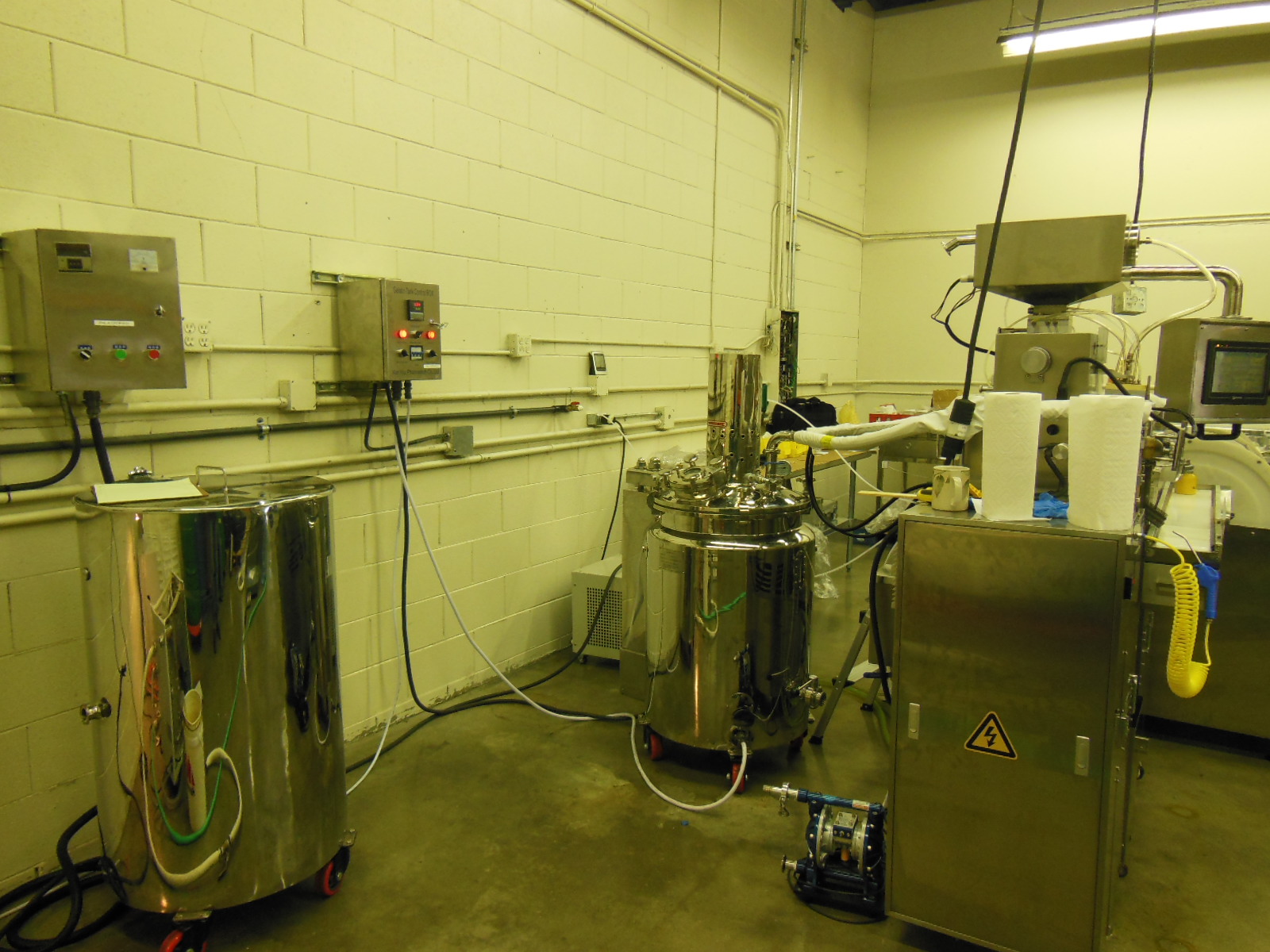

S403 R&D type softgel making machine/soft capsule making machine is an experimental soft capsule machine designed especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.
Specifically speaking, it has the following characteristics:
Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.
Important parts use aviation grade high wear-resisting material
Main shaft run out and parellelism within 0.02mm
All bearing use well know brand
Medicine pump dosing deviation less than 1.5%
Worm gear, gear and shaft adopt special material with high accuracy and long service life
Gelatin ribbon micro lubrication system
Main shaft, mangle roller, colling drum driven by independent motor, speed controlled via frequency inverter.
Precision PID temperature control of the medicine hopper, injection wedge and spreader box.
Medicine hopper adopts thermal insulation design.
PLC and touch screen control, with functions of failure diagnosis.
Releative products
Applications:
It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.
Specification
| Model | S403 |
| Die roll size | Ф80X100mm |
| Die roll speed | 0~5rpm |
| Overall dimension | 1250×400×2300mm |
| weight | 600kg |
| Power supply | 380V/240V,50/60HZ |
| Power of the main motor | 1.1kw |
| Power of the main machine | 3kw |
| S403 R&D softgel encapsulation machine |
| Shape | Capsules/hour |
| 2r/min | 3r/min | 4r/min |
| 5#OV | 12600 | 18900 | 25200 |
| 8#OV | 11400 | 17100 | 22800 |
| 10#OV | 8640 | 12960 | 17280 |
| 11#OB | 7200 | 10800 | 14400 |
| 16#OB | 6840 | 10260 | 13680 |
| 20#OB | 6480 | 9720 | 12960 |
| 24#OB | 6120 | 9180 | 12240 |
| Paintball | 7200 | 10800 | 14400 |
| 6#round | 14280 | 21420 | 28560 |
Competitive Advantage:
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision
4. Small load difference
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
